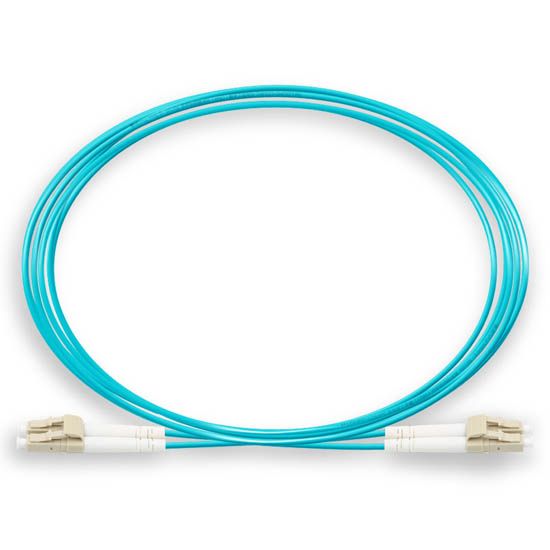

DAD LINK Fiber Optic OM3 LC-LC Duplex Patch Cord

DAD LINK OM3 LC-LC Duplex Fiber Optic Patch Cord - 50 �m laser-optimized multimode fiber, aqua jacket, LC duplex connectors with UPC-polished ceramic ferrules.

OM3 is the standard workhorse for modern data center interconnects. This patch cord supports 10 Gbps up to 300 meters and 100 Gbps up to 70 meters - suitable for SFP+, QSFP+, and QSFP28 transceivers in switches, servers, and storage arrays. The LC connector is the dominant interface in all modern SFP/SFP+ equipment, giving twice the port density of SC at patch panels.

Key Specifications

• Fiber type: OM3 multimode, 50/125 �m
• Jacket color: Aqua
• Connector: LC/UPC duplex (both ends)
• Insertion loss: < 0.3 dB per connector
• Return loss: > -50 dB
• 10 Gbps range: up to 300 m
• 100 Gbps range: up to 70 m
• Available lengths: 1 m, 2 m, 3 m, 5 m, 10 m (specify on order)

Also available: OM3 LC-SC duplex for legacy ODF ports. For campus or inter-building links, see OS2 single-mode LC-LC. Learn more in the guide: Fiber Optic Patch Cord Types Explained.
