DAD LINK Shielded 24-Port Full-Loaded Patch Panel CAT.6A
- Cat.6A shielded FTP, fully loaded
- 24 ports, 500 MHz — 10GBASE-T to 100 m
- 1U 19-inch, screen bonded to rack ground

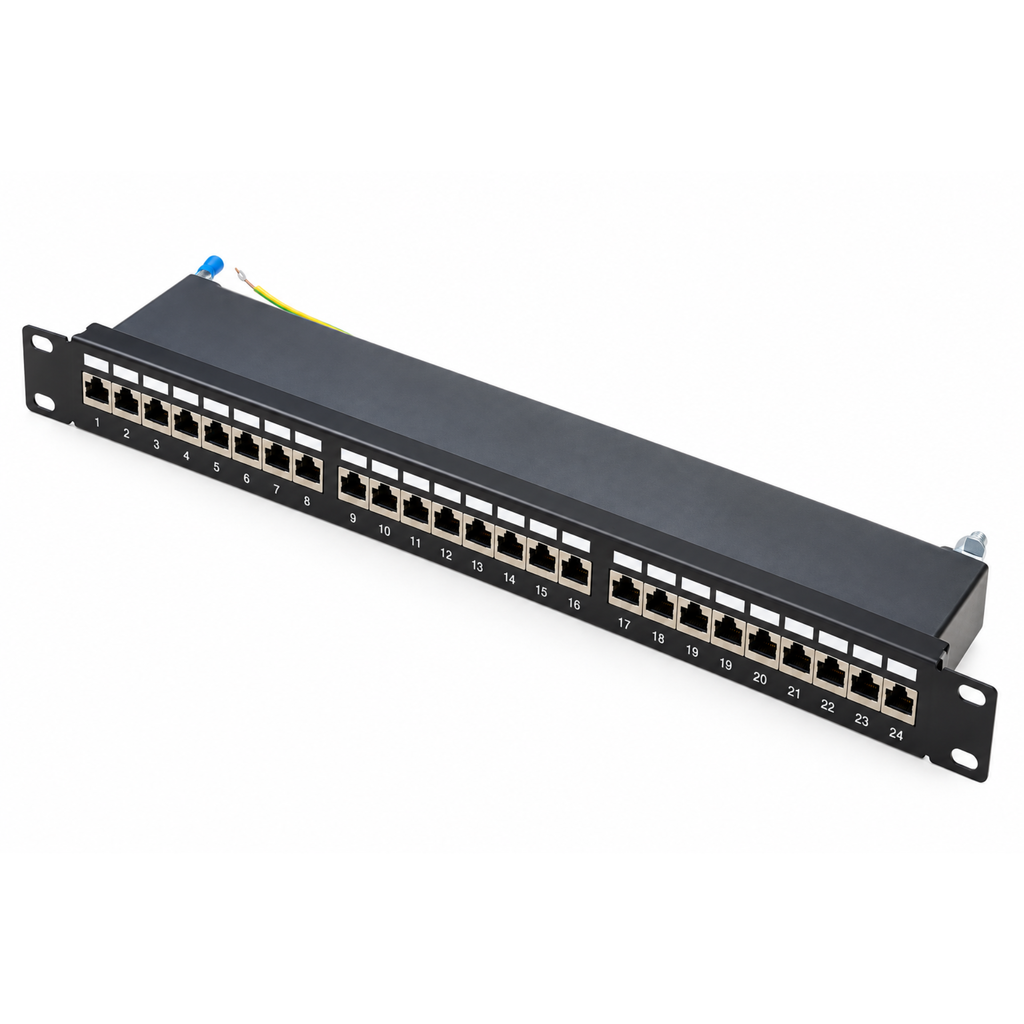

DAD LINK Shielded 24-Port Full-Loaded Patch Panel CAT.6A – a 1U, 19-inch rack-mount panel with 24 pre-installed shielded (FTP) Cat.6A keystone jacks rated to 500 MHz, in a metal body that grounds the cable screen.
The panel to choose for 10 Gigabit links that must survive interference - long 10GBASE-T channels where alien crosstalk is the limiting factor, or routes packed beside power and machinery. Shielding plus Cat.6A headroom gives the most robust copper channel in a compact 1U footprint. Rear IDC contacts accept both T568A and T568B wiring.
Key Specifications
- Category: Cat.6A (Class EA), shielded FTP/STP
- Bandwidth: 500 MHz — 10GBASE-T to 100 m
- Ports: 24, fully loaded keystone jacks
- Format: 1U, 19-inch rack mount
- Shielding: metal body, screen bonded to rack ground
- Termination: rear IDC punch-down, T568A/T568B
Prefer to skip the grounding and save cost? See the unshielded Cat.6A panel. Scale up with the shielded 48-port panel, and patch with Cat.6A patch cords. Guide: Cat6 vs Cat6A. Order in Iraq with fast local delivery from DAD LINK authorized distributors.
