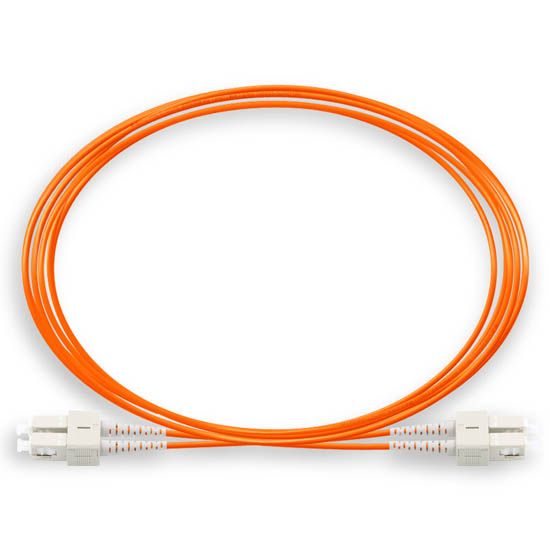

DAD LINK Fiber Optic OM1 SC-SC Duplex Patch Cord

The DAD LINK Fiber Optic OM1 SC-SC Duplex Patch Cord is a two-fiber multimode jumper on 62.5/125 um OM1 glass with an SC duplex connector at both ends. DAD LINK supplies it to IT integrators and contractors across Iraq for patching legacy multimode plant at SC-terminated frames and panels.

SC is still the dominant port on optical distribution frames, older media converters and the transport equipment sitting in many Iraqi telecom rooms and government server rooms. Where the whole multimode link is SC end to end, an SC-SC duplex cord is the correct and simplest crossing: no adapters, no extra mated pairs, no mixed-ferrule assemblies to keep clean. A common placement in a Sulaymaniyah or Erbil facility is inside a rack where an ODF tray presents SC/UPC ports and a converter shelf below it presents the same, and the two are cross-connected without disturbing the terminated fiber.

Specification

• Fiber grade: OM1 multimode, 62.5/125 um core and cladding
• Connector: SC duplex, both ends
• Ferrule: 2.5 mm ceramic, the standard SC ferrule size
• Coupling: push-pull latch, keyed duplex clip
• Fiber count: 2, transmit and receive in one duplex assembly
• Operating windows: 850 nm and 1300 nm
• Length and connector polish: specify when ordering

Which cord do you need

SC-SC is right when both ends are SC and the plant is 62.5/125 um multimode. If the switch side has moved to LC optics, the OM1 LC-SC duplex patch cord makes the crossing in one part. If the link is single mode rather than multimode, the equivalent is the OS2 SC-SC duplex patch cord on 9/125 um fiber. To terminate the OM1 backbone that feeds these ports, splice in an OM1 UPC pigtail. The wider range is under fiber patch cords, and grade selection is explained in Fiber Optic Patch Cord Types Explained.

To order OM1 SC-SC duplex patch cords in Iraq, contact an authorized distributor.
