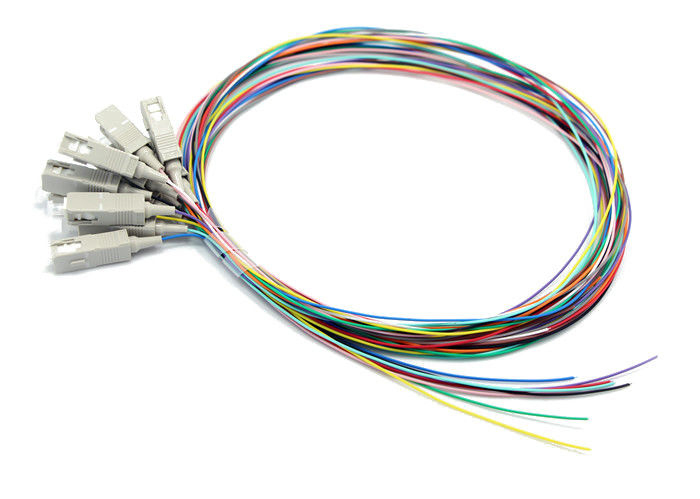

DAD LINK Fiber Optic OM4 Pigtail UPC Patch Cord

DAD LINK Fiber Optic OM4 Pigtail UPC Patch Cord

  • OM4 laser-optimized 50/125 µm
  • UPC connector, fusion-splice pigtail
  • 10GbE to 400 m / 100GbE to 150 m
Patch Cord
  • Connector
Contact Us
Contact the Distributor Closest to You
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DAD LINK Fiber Optic OM4 Pigtail UPC Patch Cord – a laser-optimized 50/125 µm multimode fiber tail with a factory UPC-polished connector and bare fiber for fusion splicing.

Specify OM4 for high-speed multimode backbones and data-centre interconnects where 10G, 40G, and 100G reach matters. As a laser-optimized 50/125 µm fiber it carries 10GbE to 400 m and 40/100GbE to 150 m, giving more distance headroom than OM2 or OM3 on the same core size.

Key Specifications

  • Fiber: OM4 laser-optimized multimode, 50/125 µm
  • Connector: UPC polish (ultra physical contact)
  • Operating wavelengths: 850 / 1300 nm
  • Reach: 10GbE to 400 m, 40/100GbE to 150 m
  • Termination: single-connector fusion-splice pigtail

Terminate it in a 19" 48-core ODF enclosure and mate through an LC multimode adaptor. For lower-bandwidth links see the OM2 pigtail, or the OM3 LC-LC patch cord for jumpers. Guide: Fiber Patch Cord Types Explained. Order in Iraq with fast local delivery from DAD LINK authorized distributors.
