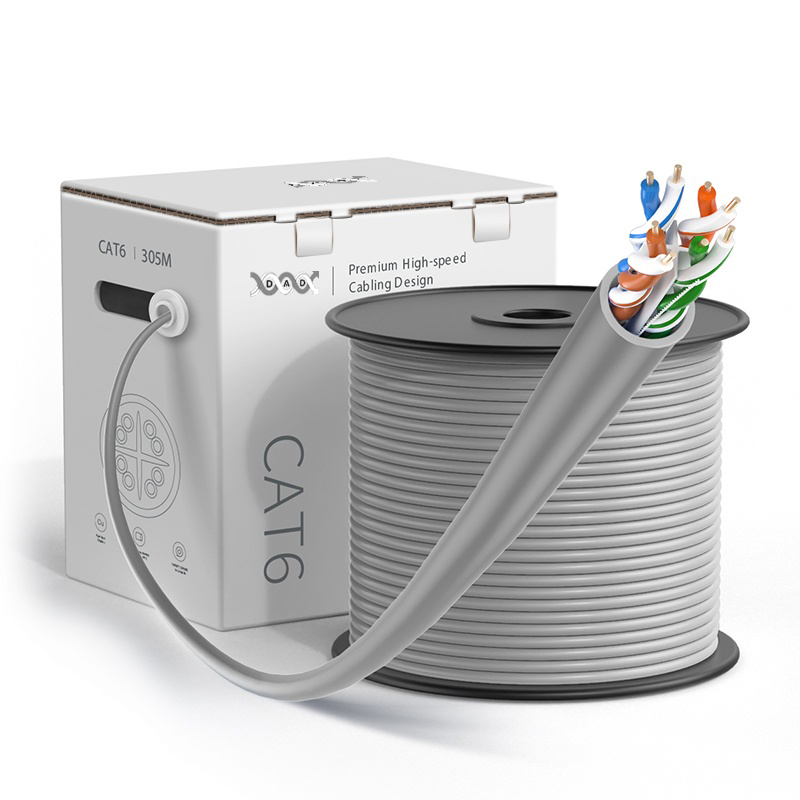

DAD LINK 305 Meter UTP Cat.6 Network Cable

DAD LINK U/UTP Cat.6 Network Cable – 305 m of 23 AWG solid bare copper, unshielded, with a cross-filler separator holding the four pairs apart and an LSZH sheath.

The default choice for ordinary indoor structured cabling: offices, classrooms, hotels, retail, and residential. With no screen to bond, it is the fastest to terminate and the easiest to route — at 6.2 mm outside diameter it is the slimmest cable in the Cat.6 range, so more runs fit a given conduit or tray. The internal separator maintains pair geometry, which is what holds NEXT in spec at 250 MHz without shielding. LSZH sheath for occupied indoor spaces.

Choose a screened cable instead if the route runs alongside mains power, or through a plant room, factory floor, or other high-interference area.

Key Specifications

• Category: Cat.6 (Class E), unshielded
• Standards: ISO/IEC 11801, TIA-568-C.2
• Bandwidth: 250 MHz — 1 Gbps to 100 m
• Conductor: solid bare copper, 0.565 ± 0.005 mm (23 AWG)
• Insulation: HDPE, 0.99 ± 0.08 mm
• Construction: cross-filler separator, no screen, no drain wire
• Sheath: LSZH (RoHS compliant), 0.55 ± 0.05 mm
• Outside diameter: 6.2 ± 0.4 mm
• Impedance: 100 ± 15 Ω (1–250 MHz)
• DC resistance: ≤ 9.38 Ω/100 m · unbalance ≤ 5.0%
• Delay skew: ≤ 45 ns/100 m
• Cold bend: −20 ± 2 °C, 8× cable O.D., no visible cracks
• Length: 305 ± 1.5 m, wooden tray and carton · rip-cord included

Transmission Performance (per 100 m)

For interference-prone routes, step up to F/UTP Cat.6 or SF/UTP Cat.6. For 10 Gbps, use S/FTP Cat.6A. For outdoor runs, see SF/UTP Cat.6 Outdoor. Guide: Cat6 vs Cat6A: Which Cable to Choose.
