Adapters

A fiber optic adapter, also called a fiber coupler or a bulkhead coupler, is the passive sleeve that holds two fiber connectors nose to nose so light passes cleanly from one to the other. It is what turns a pigtail into a usable port on the front of a panel, and what lets a patch cord plug into an ODF, an FTTH box or a wall outlet. DAD LINK supplies fiber adapters across Iraq, from Erbil and the Kurdistan Region to Baghdad, in SC and LC, single mode and multimode, simplex, duplex and 4 core formats.

Adapters

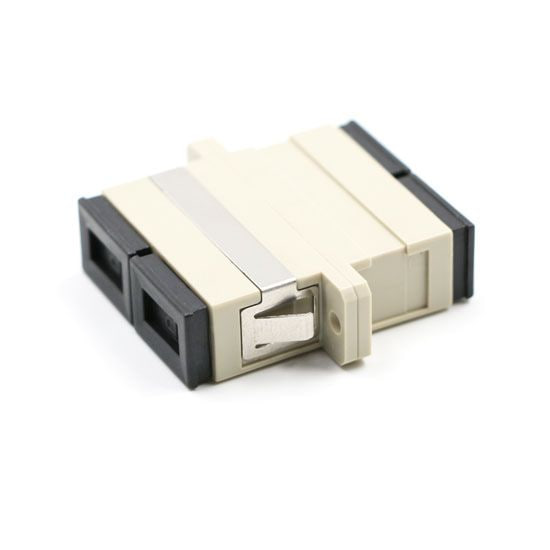

DAD LINK SC/UPC-SC/UPC Multimode Duplex Adaptor

SC/UPC-SC/UPC-MM-DX

Contact Distributor

Adapters

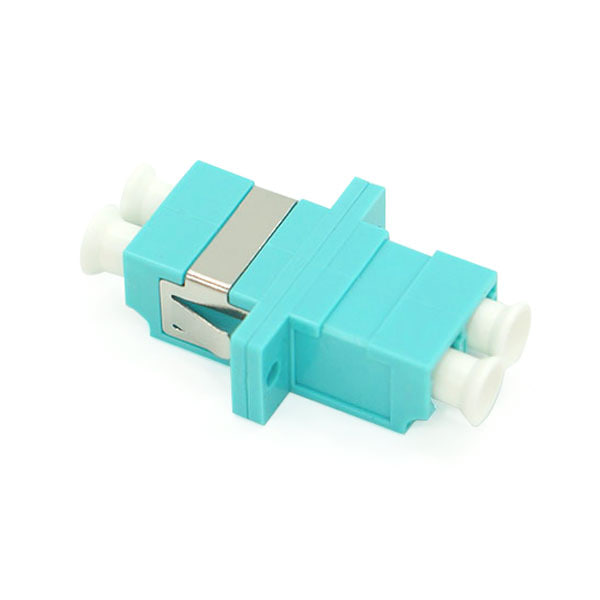

DAD LINK Fiber Optic LC/PC-LC/PC Multimode OM3 Duplex Adaptor

LC/PC-LC/PC-MM-DX

Contact Distributor

Adapters

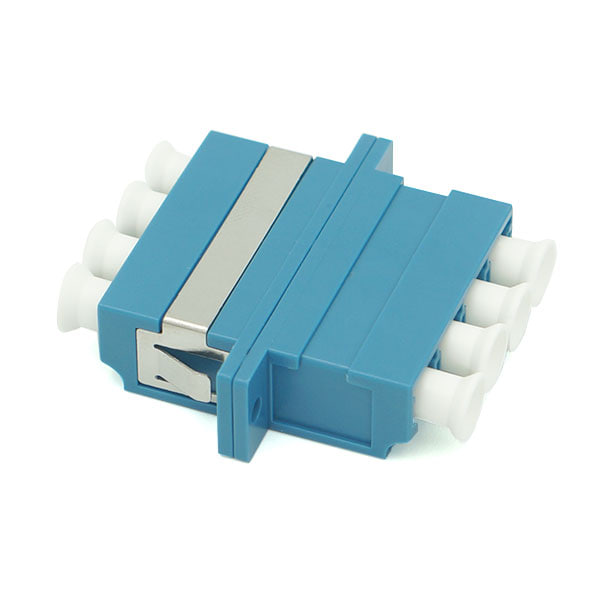

DAD LINK Fiber Optic LC/UPC-LC/UPC Single Mode 4 Core Adaptor

LC/UPC-LC/UPC-SM-4Core

Contact Distributor

Adapters

DAD LINK Fiber Optic LC/PC-LC/PC Multimode OM3 4 Core Adaptor

LC/PC-LC/PC-MM-4Core

Contact Distributor

Adapters

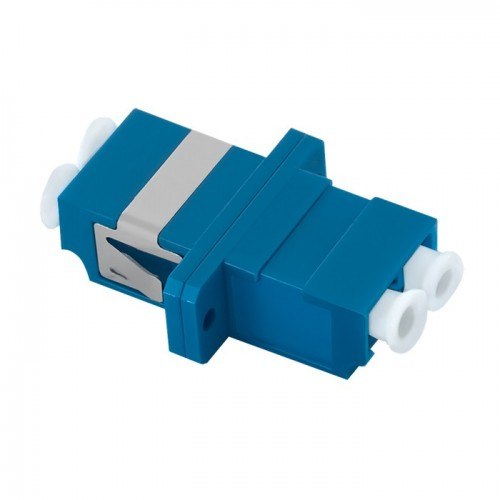

DAD LINK Fiber Optic LC/UPC-LC/UPC Single Mode Duplex Adaptor

LC/UPC-LC/UPC-SM-DX

Contact Distributor

Adapters

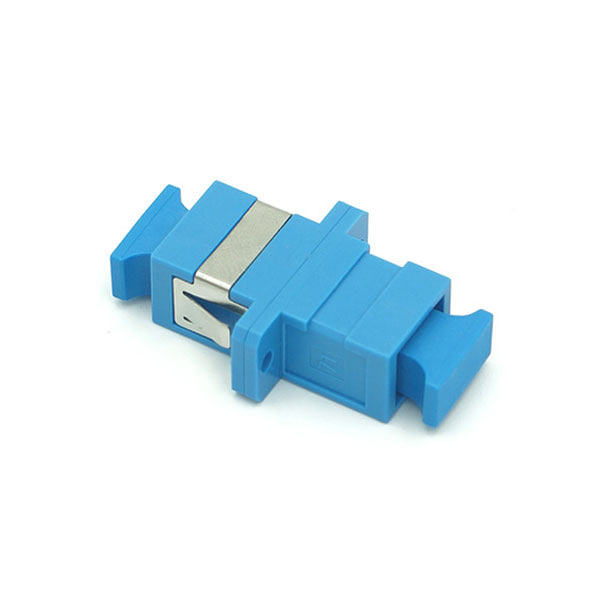

DAD LINK Fiber Optic SC/UPC-SC/UPC Single Mode Simplex Adaptor

SC/UPC-SC/UPC-SM-SX

Contact Distributor

Adapters

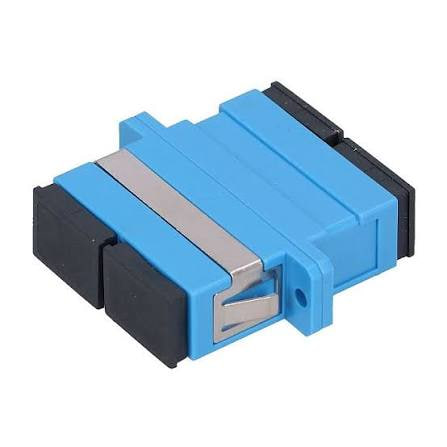

DAD LINK SC/UPC-SC/UPC Single Mode Duplex Adaptor

SC/UPC-SC/UPC-SM-DX

Contact Distributor

How to choose a fiber adapter

Connector family must match on both sides. An SC adapter mates two SC connectors, an LC adapter mates two LC connectors. Adapters do not convert one connector type into another. If you need to bridge SC to LC, use a hybrid LC-SC patch cord instead.
Single mode or multimode. The sleeve tolerance differs. Single mode adapters use a tighter ceramic alignment sleeve suited to a 9/125 um core. Multimode adapters are matched to 50/125 um and 62.5/125 um plant. Using the wrong one adds avoidable loss at every mated pair.
Polish must match on both sides. UPC mates to UPC, APC mates to APC. Mating an angled endface to a flat one damages the ferrule and wrecks the link budget.
Simplex, duplex or 4 core. Simplex holds one mated pair, duplex holds two, and a 4 core unit holds four in a single panel cut-out. Higher-density units save panel space on dense ODF builds, which matters when a 48 core frame has to fit in a shared rack.

Fiber adapter range

Adaptor	Connector	Polish	Fiber	Positions
SC/UPC-SC/UPC Single Mode Duplex	SC to SC	UPC	Single mode	Duplex
SC/UPC-SC/UPC Single Mode Simplex	SC to SC	UPC	Single mode	Simplex
SC/UPC-SC/UPC Multimode Duplex	SC to SC	UPC	Multimode	Duplex
LC/UPC-LC/UPC Single Mode Duplex	LC to LC	UPC	Single mode	Duplex
LC/UPC-LC/UPC Single Mode 4 Core	LC to LC	UPC	Single mode	4 core
LC/PC-LC/PC Multimode OM3 Duplex	LC to LC	PC	Multimode OM3	Duplex
LC/PC-LC/PC Multimode OM3 4 Core	LC to LC	PC	Multimode OM3	4 core

Where fiber adapters are used in Iraq

Adapters are a per-port consumable, so they are ordered by the tray, not by the piece. Every populated position in an ODF enclosure needs one, and so does every drop presented in an FTTH box. On ISP last-mile work across Iraq the SC single mode units dominate, because SC remains the standard on Iraqi FTTH plant. In data centres and server rooms in Erbil and Baghdad the LC units take over, since LC matches SFP and QSFP optics and fits twice as many ports in the same panel width.

Order them alongside fiber pigtails, which they mate on the rear, and fiber patch cords, which plug into the front. Connector and polish background: Fiber Optic Patch Cord Types Explained.

For tray quantities and project pricing anywhere in Iraq or the Kurdistan Region, contact a DAD LINK authorized distributor.
